How to Plan a Professional Fiber Internet Installation for Your Business

Assess Business Needs and Readiness for Fiber

Every effective fiber installation begins with a reality check: what does your business need today, and what will it likely need for the next 36 months? Start with an application inventory and map each workload to bandwidth and latency expectations. Real-time voice and video are sensitive to jitter and packet loss; cloud collaboration, ERP, and SSO services lean on consistent throughput and reliable DNS; backups and bulk data transfers demand high peak capacity. Practical ranges help frame the conversation: HD video conferencing can use roughly 1.2–3 Mbps per concurrent session, 4K streams can exceed 15–25 Mbps, and cloud-first offices often see sustained per-user demand well under 5 Mbps—but aggregate bursts during updates and syncs can be much higher. Latency into a metro backbone on fiber can commonly stay in the single-digit to teens of milliseconds, which supports low-jitter use cases when the LAN is well designed; actual values depend on distance and carrier routing.

Right-size capacity by profiling traffic for two weeks. If you lack telemetry, approximate with scheduled tests and a short-term monitoring agent. For a 120-person office with hybrid work, you might find peaks around 400–700 Mbps when backups, updates, and all-hands meetings overlap. Fiber with symmetrical speeds helps because uploads for cloud drives, media, and remote backups are no longer second-class citizens. Plan headroom of at least 25–40% above measured peaks to absorb bursts and growth. For fast-growing teams, consider 2–3-year forecasts based on hiring plans, new software rollouts, and upcoming media initiatives.

Physical readiness matters as much as throughput. Document the building entry point, risers, ceiling pathways, and the main distribution frame (MDF) or central rack. Note power, grounding, contiguous rack space, and environmental conditions like temperature and dust. Bend radiuses, potential obstructions, and legacy cabling can affect construction time and cost. A short checklist clarifies the picture:
– Where will the fiber enter the property and transition to indoor-rated cable?
– Is there a clean, labeled demarcation point with room for a handoff and cross-connects?
– Do you have diverse conduits or pathways for future redundancy?
– Are there policies for after-hours access and escort requirements?

Finally, define success in writing. Specify target bandwidth, jitter thresholds (for example, sub-20 ms for voice), acceptable packet loss (often under 0.1% for real-time apps), and a desired uptime target aligned with your tolerance for downtime. This becomes your acceptance baseline when the circuit goes live.

Design the Physical and Logical Infrastructure

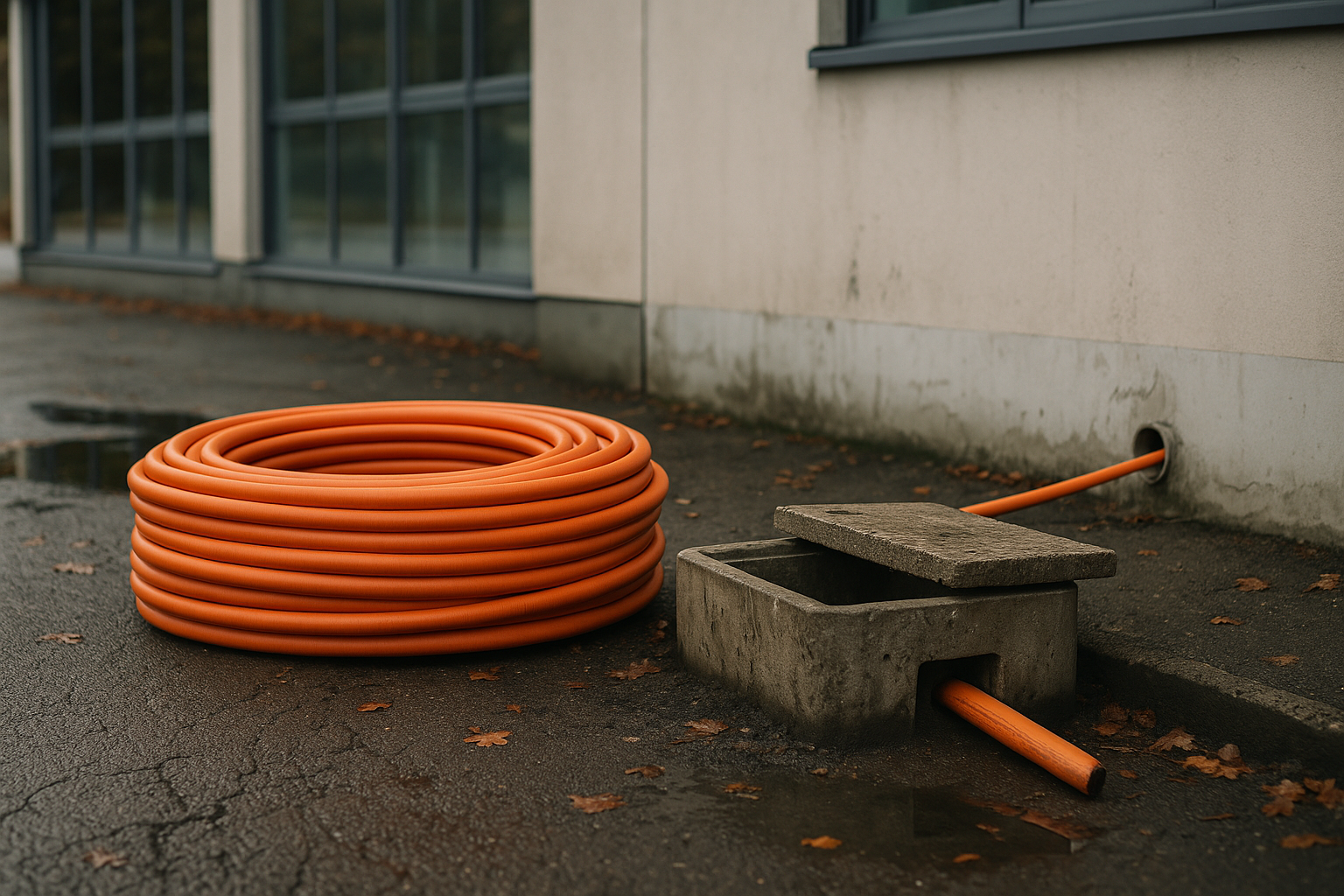

With needs scoped, design the build so the fiber path is clean, code-compliant, and easy to maintain. The outside plant portion covers the route from the street to your building entry; inside plant covers fire-rated pathways from entry to your demarcation and onward to IDFs. Conduit planning benefits from a modest margin—keeping fill around 40% leaves room for pull strings and future cables. Gentle sweeps reduce stress, and avoiding sharp angles protects the glass. For indoor distribution, choose riser- or plenum-rated cabling as required by local code. Maintain recommended bend radius; a common rule of thumb is at least 10 times the cable diameter for permanent placement, with more generous arcs for patching and moves.

Selecting media types and connectors is a trade-off between distance, density, and cost. Single-mode fiber (often designated for long distances) supports high speeds over many kilometers, making it a strong default for service provider handoffs and campus runs. Multimode fiber can be appropriate for short in-building links; for example, 10 GbE links often run a few hundred meters over modern multimode variants. Connector types such as LC offer compact density, while SC is larger but still widely used; both are well-established. For distribution frames, use well-labeled patch panels and trays with strain relief. Splicing decisions hinge on distance and slack management: fusion splices create low-loss, durable joints ideal for permanent runs, while field-terminated connectors can speed on-site work but require precise preparation and testing.

Design the logical topology in tandem. Determine whether the provider will hand off Layer 2 Ethernet or require a routed interface. Allocate VLANs for voice, collaboration devices, guest access, and management networks to isolate traffic patterns and apply the right quality of service (QoS). Reserve subnets for growth; avoid painted-into-a-corner address plans. Consider a core switch pair or a compact routing stack with link aggregation for redundancy at the demarc. For critical environments, pre-wire a second path from the demarc to your core, even if a secondary circuit comes later.

Document every decision. A one-page schematic showing the entry point, route, demarc, rack elevations, and cross-connects will save hours during installation. Include a bill of materials, labeled cable IDs, and a fiber strand map. Useful notes to capture:
– Demarcation location and available power receptacles
– Patch panel ports reserved for the provider handoff
– Slack loops and splice tray locations
– Grounding and bonding points

This blend of physical clarity and logical foresight reduces surprises and accelerates turn-up once construction finishes.

Select Providers, Service Types, and SLAs You Can Enforce

Choosing a provider is about fit, not just raw speed. Start by verifying who has facilities on or near your block; proximity influences construction time and non-recurring costs. Ask about route diversity: two fibers in the same duct are not truly redundant. Compare service types carefully. Dedicated internet access (DIA) delivers committed, symmetrical bandwidth with an enforceable SLA. Shared services can be economical for small offices, but bandwidth may vary during peak hours. Some providers offer burstable tiers, allowing temporary spikes above the committed rate for defined intervals.

Scrutinize SLAs beyond the headline uptime figure. The difference between 99.9% and 99.99% uptime equates to roughly 43.8 minutes vs. 4.38 minutes of monthly downtime, respectively. Look for detailed metrics and remedies:
– Latency and jitter targets within the provider’s network
– Packet loss thresholds and measurement methods
– Time-to-restore commitments for outages (for example, four hours)
– Credits structure that scales with impact and duration
– Planned maintenance notification windows and schedules

Provisioning timelines are influenced by locates, permits, and building access. Typical lead times range from 45 to 120 days, with longer intervals when construction is complex or municipal approvals are backlogged. Clarify non-recurring charges (NRC) for construction, monthly recurring charges (MRC), and whether inside wiring is included to the demarc or only to the building entry. Ask for a clear scope-of-work that states who covers coring, conduit, and penetrations. If a landlord approval or right-of-entry agreement is required, initiate that paperwork early to avoid the most common delay.

When you consolidate proposals, build a comparative matrix that weights what matters to your business: uptime target, latency, jitter, installation interval, NRC/MRC, right to upgrade mid-term, and exit terms. Avoid chasing a rock-bottom monthly rate that hides high construction fees or a lengthy timeline. A balanced contract might include the ability to scale from 500 Mbps to 2 Gbps mid-term with predictable pricing, explicit diversity options, and a fair credit policy. If your operations are highly time-sensitive, a month-to-month circuit as a temporary bridge can carry you until the primary fiber is delivered. Choose the partner whose technical depth, transparency, and local construction readiness align with your risk tolerance and growth plan.

Coordinate the Build: Permits, Construction, and Turn-Up Testing

Once the contract is inked, treat the installation like a construction project with milestones, owners, and clear acceptance tests. Kick off with a site survey that confirms the route, handoff type, power, and grounding. Ensure a utility locate ticket is opened so crews avoid existing infrastructure. If municipal permits are needed for trenching or sidewalk work, track submission and approval dates. Align landlord or facilities approvals for building entry and after-hours access. A concise roadmap helps everyone stay synchronized:
– Week 0–1: Project kickoff, documentation exchange, and safety protocols
– Week 2–3: Detailed site survey, route confirmation, and demarcation design
– Week 4–8: Permits, utility locates, outside plant construction, and building entry preparation
– Week 8–10: Inside plant cabling, rack installation, and splicing
– Week 10–12: Light-up, testing, remediation, and acceptance

Construction day is all about precision. Crews place conduit with smooth sweeps, pull fiber, and leave generous slack loops near splice enclosures and patch panels. Inside, technicians route cable through rated pathways, respecting bend radius and securing strain relief. Splice trays are organized, and handoffs are labeled at both ends. Keep a running punch list for minor issues like missing dust caps, insufficient slack, or mislabeled ports.

Testing is your moment of truth. Require optical time-domain reflectometer (OTDR) traces to verify splice quality and identify any microbends or reflections. A light source and power meter confirm end-to-end loss is within specification for your media type and connectors. On the IP side, run throughput tests during off-hours to validate the committed rate. Measure baseline latency, jitter, and packet loss to internal and external test targets. Capture all results with timestamps and equipment details so you can compare after changes or upgrades. Acceptance should be contingent on these measurements meeting the SLA and your internal thresholds; document exceptions and remediation plans before signing off.

Finally, request as-built drawings, final strand maps, and updated rack elevations. Store contact details for escalation, maintenance windows, and a spare SFP inventory list. When the light is steady and the numbers look right, schedule a cutover window that minimizes business impact—often after close of business or over a weekend. A brief post-cutover watch period helps catch lingering issues before declaring the project complete.

Post-Install Optimization, Resilience, and a Practical Conclusion

After turn-up, focus shifts from construction to consistency. Start with monitoring: track latency, jitter, packet loss, and utilization at five-minute intervals or finer. Build alerts around anomalies rather than raw thresholds, since short bursts can be harmless while sustained degradation hurts users. A simple service health panel that shows key metrics and provider status helps support teams respond quickly. Correlate application logs with network metrics to distinguish connectivity hiccups from app-side slowdowns.

Resilience is about thoughtful layers. If downtime is costly, add a secondary internet circuit via a different entrance and physical path, ideally from an alternate provider. Route diversity protects against a single backhoe or duct failure. Implement automatic failover using routing that detects path health and shifts traffic without manual intervention. Place core equipment on conditioned power with battery backup sized for a graceful shutdown or bridge to generators. For voice, collaboration, and customer portals, set performance targets that match business stakes, such as jitter below 20 ms and packet loss under 0.1% during business hours. Internally, segment networks to reduce broadcast noise and enforce QoS so real-time traffic keeps its share even during large data transfers.

Operational hygiene keeps fiber fast over the long haul. Maintain clean connectors with lint-free tools, store spare optics in labeled containers, and always replace dust caps. Schedule quarterly reviews of metrics, trouble tickets, and any SLA credits to spot patterns. Keep copies of as-builts, change logs, and a concise runbook for escalations. Useful ongoing practices include:
– Monthly validation of throughput against the committed rate
– Biannual failover tests for secondary links and core component redundancy
– Annual capacity planning aligned to hiring and new software rollouts

Conclusion for business leaders: a professional fiber installation is not just a faster pipe—it’s a stability and growth platform. By sizing capacity to your real workloads, designing clean pathways, selecting enforceable SLAs, and proving performance at turn-up, you build confidence into daily operations. Add resilience where the business case is clear, monitor what matters, and keep documentation tight. That discipline turns a one-time project into a durable advantage: fewer surprises, smoother collaboration, and a foundation ready for whatever your roadmap demands next.
